Drum Stands and Trolleys

Of strong all welded tubular steel construction these drum stands and trolleys enable one man to handle drums of 40 - 50 gallon (200ltr.) size cleanly, easily and safely. They form compact storage units and occupy little floor space. Waste and spillage on the floors is kept to a minimum and fire risks, untidy premises and strain on operators are obviated.

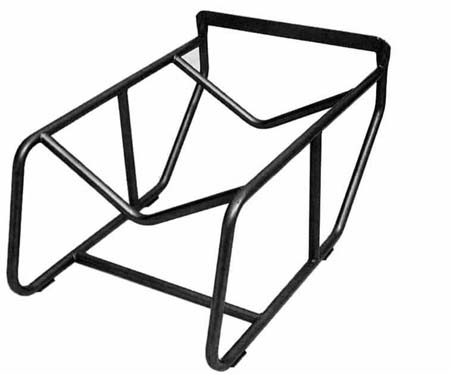

Type No. T24

Order ref: AAO 16180

Designed as a static storage unit for use where drums do not have to be moved, and weighing only 17lb (7.7kg) this unit can easily be carried from place to place.
The base of the unit is fitted with steel shoes to prevent wear of the frame.

Specification

Overall length 34" 9863mm)
Overall width 23 1/2" (596mm)
Overall height 13 1/2" (342mm)
Height of drum tap 13” (330mm)

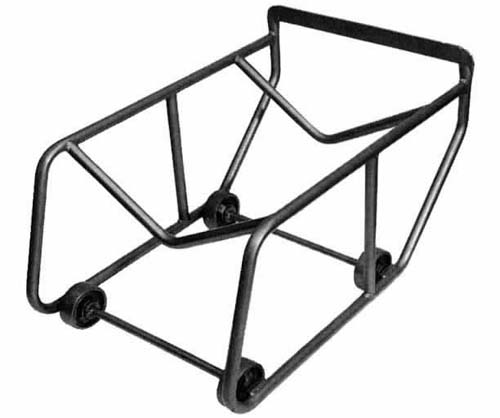

Type No. T24A

Order ref: AAO 16181

Similar to Type No. T24, but fitted with four 4” fixed dia. cast iron wheels on 1” solid steel axles. This trolley is ideal where drums are only moved short distances and where occasional turns can be effected satisfactorily by “skidding” the rear wheels sideways on smooth concrete floors.

Specification

Overall length 34" 9863mm)
Overall width 23 1/2" (596mm)
Overall height 15 1/4" (393mm)

Type No. T24B

Order ref: AAO 16188

This model has 2 x 4” fixed wheels and 2 x castors to make moving and steering as easy as possible.

Specification

Overall length 34" 9863mm)
Overall width 23 1/2" (596mm)
Overall height 13 1/2" (342mm)

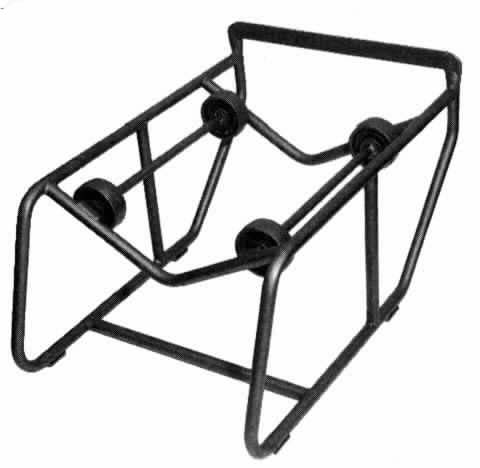

Type No. T24C

Order ref: AAO 16182

Identical with Type No.T24 but fitted with top rollers which allow the drum to be rotated easily while in position on the cradle for drainage and discharging heavy liquids quickly from the side bung.

Specification

Overall length 34" 9863mm)
Overall width 23 1/2" (596mm)
Overall height 13 1/2" (342mm)
Height of drum tap 13” (330mm)
