4” H.D.L.V. Heavy Duty Diamond Wheel Trimmer

Ref: AAO 17769

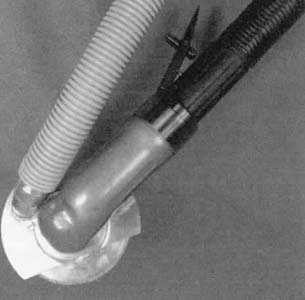

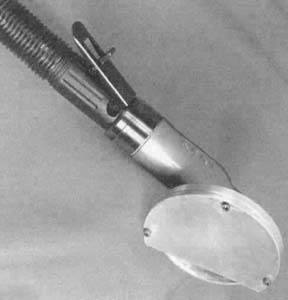

The Downland 4" H.D.L.V. is a pneumatic, heavy duty, low vibration diamond wheel trimmer developed to meet the most stringent noise and vibration-level regulations. It is a well balanced tool that is quieter, more comfortable to use but even more powerful than earlier models and will quickly and easily cut 12-15mm GRP laminates producing a clean smooth edge. The wheel guard is fitted with a detachable dust cover and the guard also has a connection for a vacuum hose coupling.
The Downland H.D.L.V. 4” Diamond Wheel Trimmer is a quiet-running, high quality tool that will give years of service.

                                                  Specification
Recomended wheel size..................100x16x1.6mm (4”x5/8”x0.060”)
Maximum free speed ............................................................12500rpm
Overall length ..............................................................................257mm
Height.............................................................................................78mm
Weight ............................................................................................1.7kg
Maximum output...........................................................................0.85kw
Hose size........................................................................................3/8 ID
Vacuum hose coupling.................................................................25mm
Average air consumption......................................................28.3 CFM
Noise level (no load)..................................................................82Db(a)
Vibration level (no load) ........................................................2.2m/sec²
Air inlet thread.............................................................................3/8NPT
Maximum air pressure....................................................6 BAR, 85 PSI
Maximum depth of cut.........................................................7/8” (22mm)
