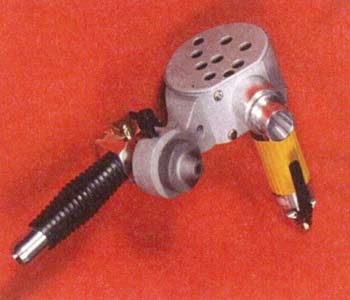

MK11 Spray Gun and Chopper (Twinhead)

Ref. No AA020002

MK11

The Downland MKII Spraygun/chopper is the original industry 'workhorse' and has been in continuous production for over 20 years.  It is a robust spraygun of simple, construction, capable of spraying course slurry and best suited to open and flat moulds.
The chopper is driven by a powerful, 6000 RPM pneumatic motor and has a direct drive variable bladed cutting cylinder operating in conjunction with an adjustable, cam mounted polyurethane roller.   Chopped glass is expelled from the cutting chamber by a lightweight airmover which impinges on the slurry stream.
The MKII Twinhead has the chopper mounted above the spraygun but it can also be swung through 90 to produce a side-by-side arrangement which some operators find preferable.
The MKII is supplied as standard with a 6000 RPM motor, 9mm spray nozzle, 6 slot cutting cylinder and 3 hole roving tube, but the following variations are available:

6000 RPM airmotor - Output 0.5-2Kg/min 2600 RPM airmotor - Output 0.2-0.5Kg/min.

6 slot cylinder ...18mm & 36mm strands
8 slot cylinder ...14mm strands
9 slot cylinder ...12mm strands

6 mm Material Tip and Air Cap - Output 2-5Kg/min
9 mm Material Tip and Air Cap - Output 5-15Kg/min
12 mm Material Tip and Air Cap - Output 15-20Kg/m

1 hole Rovings Feed Tube for chopping 2 or 3 rovings simultaneously

Specification

SLURRY OUTPUT
FIBRE OUTPUT
AIR CONSUMPTION
WEIGHT

UP TO 20Kg/min
0.2-2Kg/min (dependent on airmotor & feed tube)
25 L/S @ 7 BAR
2.6Kg.
