Sheet Wax Adhesive Coated

71c

Whenever it is required to add a definite material thickness to any flat or contoured surface, sheet wax is commonly used.
For plastic fabrications with epoxy or polyester resins, Thermo Stable Sheet Wax can be used with every assurance that its dimensional stability will not be disturbed by the exothermic reaction during the curing process of the resin.

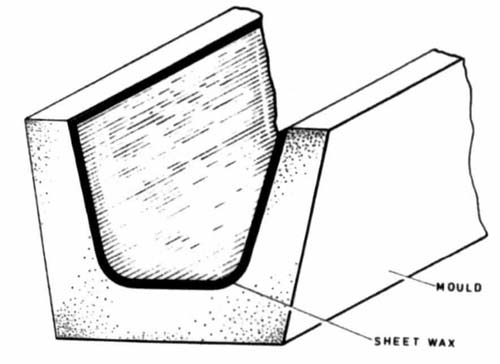

Sheet wax is an accepted essential material used for adding component thickness to cold press and resin injection moulds. The specially formulated adhesive will hold the sheet wax to its applied surface throughout the temperature resistance range of up to 266F, this ability to continue to adhere during the curing period is important in maintaining accurate component thickness.
In cold weather it may be necessary to temper the sheet by artificial heat until it can be applied more readily.
Firstly coat with Shellac varnish and also a P.V.A. release agent for perfect release when casting plaster or G.R.P. against a sheet wax surface. Sheet wax is packed in cartons, each sheet is 24" x 12" (610mm x 305mm) and the adhesive coating is protected by easily removed backing paper. In 29 thicknesses from 0.010" to 0.375". (0.25mm to 9.5mm).



Order Ref.

Thickness

Sheets per box

AAO 18650

0.010” (0.25mm

10

AAO 18651

0.015”

10

AAO 18652

0.018”

10

AAO 18653

0.020” (0.5mm)

10

AAO 18654

0.024”

10

AAO 18655

0.028”

10

AAO 18656

0.031  1/32”   (0.75MM)

8

AAO 18657

0.036”

8

AAO 18658

0.040”  (1mm)

8

AAO 18659

0.048”

8

AAO 18660

0.050”

8

AAO 18661

0.060”

8

AAO 18662

0.063  (1/16”)

8

AAO 18663

0.070”

8

AAO 18664

0.08”  (2mm)

6

AAO 18665

0.092”

6

AAO 18666

0.100” (2.5mm)

6

AAO 18667

0.110”

4

AAO 18668

0.116”  (3mm)

4

AAO 18669

0.125”  (1/8”)

4

AAO 18670

0.140”  (3.5mm)

4

AAO 18671

0.158”  (4mm)

4

AAO 18672

0.187”  (3/16”)

3

AAO 18673

0.200”  (5mm)

3

AAO 18674

0.250”  (1/4”)

2

AAO 18675

0.375”  (3/8”)

1

To obtain more information about this product please visit the Information page or click HERE
