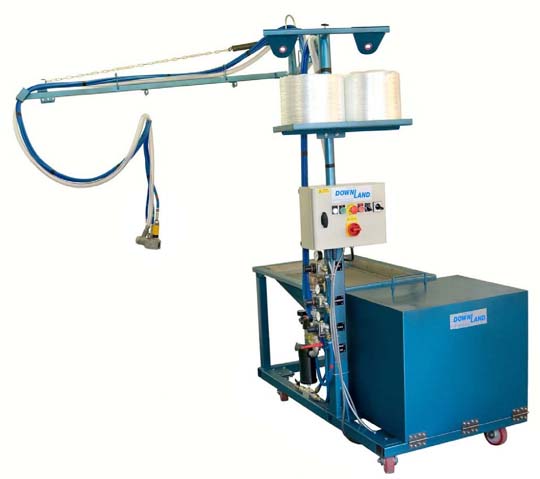

Downland SPX40D Dual Pump System

Ref. No

SPX 40D

The Downland SPX40D Dual Pump represents a new generation of pump/spray systems. It is based on a Peristaltic Pump which has a patented direct-coupled design and uses a natural rubber pump hose with an anticipated life of atleast 2000 hours due to running in a lubricant bath.

The SPX40D Dual Pump System gives the versatility of a high quality premix pump combined with a system that can produce simultaneous spray/chop for high strength products.
The SPX40D Dual Pump System is supplied with a 3.5M articulated hose and rovings boom, ST premix spraygun and PII concentric spraygun chopper. It has a 200Kg hopper with sieve and a powerful pneumatic  vibrator capable of moving the latest ‘sticky’ mixes.
The pump inlet is connected to the hopper by large-bore pipe work offering an unrestricted flow for premix slurries. It is protected by a hinged steel cover and can be further protected by a clear polythene curtain if necessary. The pump, hopper and all controls are mounted on a sturdy mobile frame and all components are easily accessible for maintenance.
The pump drive is reversible to help clear obstructionsand the pump and outlet hose are easily cleaned by flushing through water and a sponge rubber ball. The gun canbe cleaned with a water/air mixture delivered through the sprayair hose from the integral flushing valve.

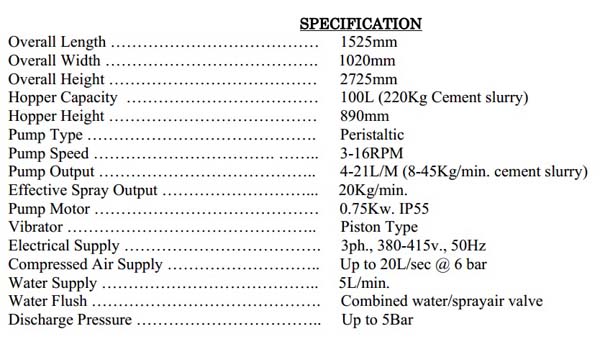

SPX 40D Spec

To obtain more information about this product please visit the Information page or click HERE
