Tank and Drum Heaters

The IBC Heating Jackets and Drum Heating Jackets are not suitable for hazardous Zone 1 and Zone 2 areas. For resin heating in hazardous areas we recommend the Thermosafe Heater

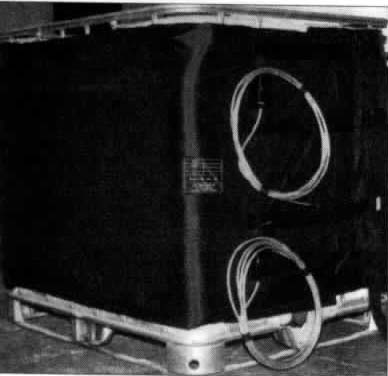

IBC Tank Heater

Order ref: AAO 16476

46a

To achieve the correct viscosity and therefore best  handling characteristics of polyester resin it should be warmed to a temperature of 20-25C.
The IBC heating jacket is a  polyurethane coated nylon outer jacket fitted with adjustable retaining straps and quick release polyurethane clips. A high thermal efficiency layer of insulation is held in place between the outer cover and the inner element carrier.

Specifications

Jacket material

Nylon base fabric. Hydrolysis resistant, polyurethane coated polyamide substrate with fluorocarbon finish

Jacket dimension

950mm height
Adjustable between 4160-431Omm on circumference

Control

Adjustable thermostat -5 to 40C

Power cable

5 metres, 2 x 1mm, PVC insulated, sheathed, galvanized steel wire braided

Electrical insulation

Double insulated

Voltage

Standard 240v, 2 x 1 kw circuits

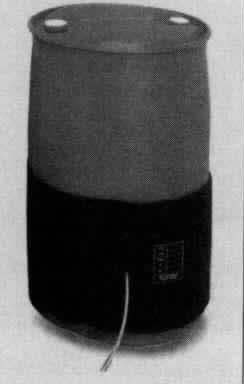

Drum Heating Jacket

Order ref: AAO 16475

46b

The heating jacket is adjustable and suitable for plastic and steel 200L drums

Specifications

Jacket material

Nylon base fabric. Hydrolysis resistant, polyurethane coated polyamide substrate with fluorocarbon finish

Jacket dimension

440mm height x 1800-1950mm on circumference

Control

Adjustable or fixed temprature thermostat

Power cable

5 metres, 2 x 1mm, PVC insulated, sheathed, galvanized steel wire braided

Electrical insulation

Double insulated

Voltage

Standard 240v, 450 watts

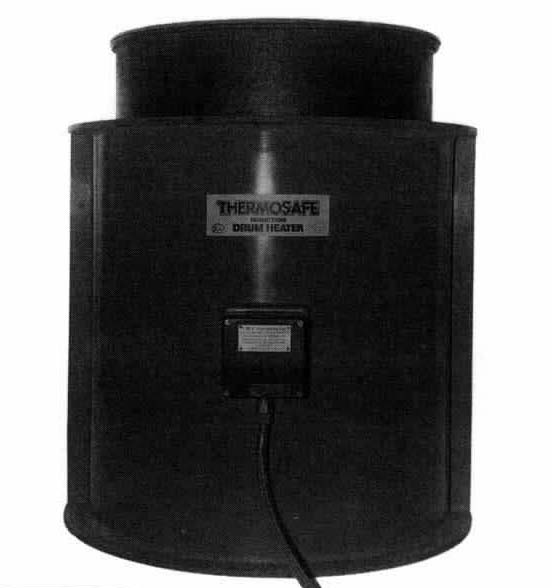

Thermosafe Drum Heater

Order ref: AAO 16479

46c

The Thermosafe Drumheater is versatile, simple, efficient, economical and totally safe even in resin storage and processing areas. It operates on the induction heating method and has been specifically designed for use in potentially explosive atmospheres. The Thermosafe produces uniform heating of drum walls and will raise the temperature of a typical 230kg drum of laminating resin from 10C to 25C in approximately 1 hour.

Specifications

Overall diameter

74.3cm (29 1/4”)

Height

71.7cm (28”)

Weight

43.0kg (95lb)

Electrical Supply

Single phase 240 volts, 50Hz AC

Class II Appliance. DO NOT EARTH.

BASEEFA Certication No. Ex 86B3044X.

EEx ll 170C(T3). (Zones 1 &2)

To obtain more information about these products please visit the Information page or click HERE
